Walk Through Frame
Categories: Frame Scaffolding
Product Superiority:
Q195 & Q235 SteelPregalvanized / Hot Dipped GalvanizedWalk-Through DesignHigh Durability
Product Description:

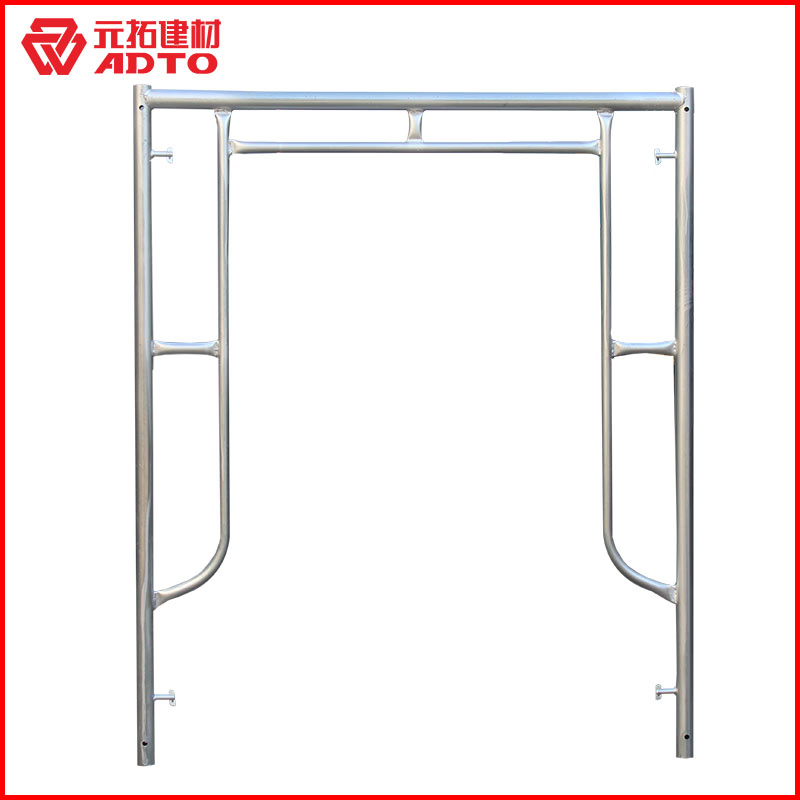

Walk Through Frame scaffolding offers an open, arched bottom that allows easy walk-through access between bays, ideal for masonry, plastering and façade works.
Manufactured from Q195 & Q235 steel with pregalvanized or hot dipped galvanized surface treatment for long service life and corrosion resistance.
Available in multiple width × height combinations to suit different working heights and project requirements.
Description of Walk Through Frame:
| Place of Origin | China (Mainland) |
|---|---|
| Brand Name | ADTO |
| Product name | Walk Through Frame |
| Material | Q195 & Q235 |
| Surface | Pregalvanized, Hot Dipped Galvanized |
| Application | Masonry, Plastering, Façade Construction |
| Loading Port | Tianjin |
| Payment Terms | L/C, T/T |

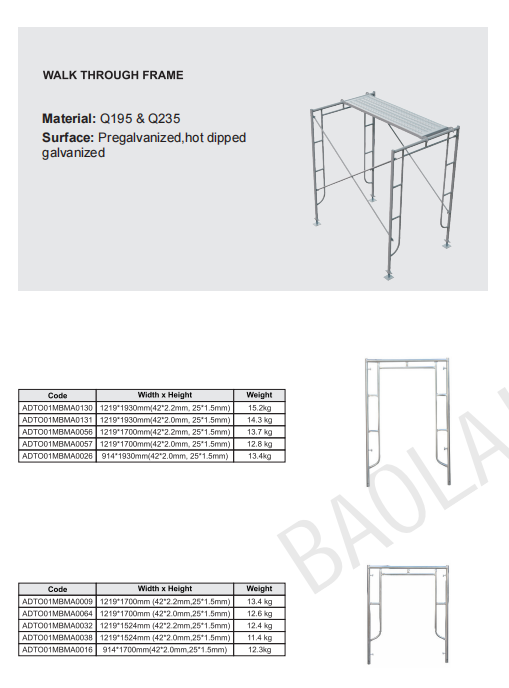

SPECIFICATION
Walk Through Frame — Type A.
| Code | Material | Length | Surface Treatment |
|---|---|---|---|
| ADTO01MBMA0130 | Q195 & Q235 | 1219 × 1930 mm (42 × 2.2 mm, 25 × 1.5 mm) | 15.2 kg |
| ADTO01MBMA0131 | Q195 & Q235 | 1219 × 1930 mm (42 × 2.2 mm, 25 × 1.5 mm) | 14.3 kg |
| ADTO01MBMA0056 | Q195 & Q235 | 1219 × 1700 mm (42 × 2.2 mm, 25 × 1.5 mm) | 13.7 kg |
| ADTO01MBMA0057 | Q195 & Q235 | 1219 × 1700 mm (42 × 2.2 mm, 25 × 1.5 mm) | 12.8 kg |
| ADTO01MBMA0026 | Q195 & Q235 | 914 × 1930 mm (42 × 2.0 mm, 25 × 1.5 mm) | 13.4 kg |
Walk Through Frame — Type B.
| Code | Material | Length | Surface Treatment |
|---|---|---|---|
| ADTO01MBMA0009 | Q195 & Q235 | 1219 × 1700 mm (42 × 2.2 mm, 25 × 1.5 mm) | 13.4 kg |
| ADTO01MBMA0064 | Q195 & Q235 | 1219 × 1700 mm (42 × 2.2 mm, 25 × 1.5 mm) | 12.6 kg |
| ADTO01MBMA0032 | Q195 & Q235 | 1219 × 1524 mm (42 × 2.2 mm, 25 × 1.5 mm) | 12.4 kg |
| ADTO01MBMA0038 | Q195 & Q235 | 1219 × 1524 mm (42 × 2.2 mm, 25 × 1.5 mm) | 11.4 kg |
| ADTO01MBMA0016 | Q195 & Q235 | 914 × 1700 mm (42 × 2.0 mm, 25 × 1.5 mm) | 12.3 kg |
