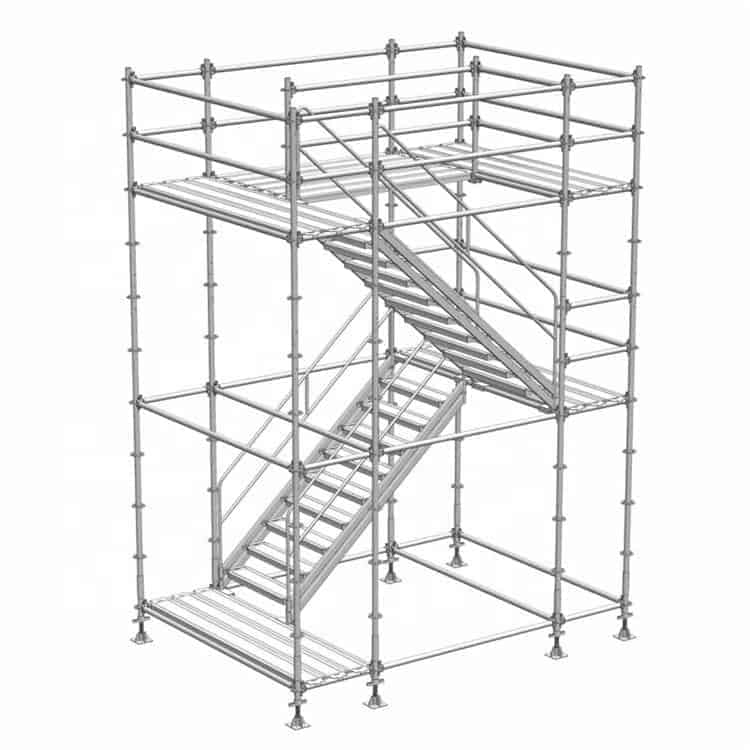

Ringlock Scaffold Stair

Categories: Scaffolding Accessories

Product Superiority:

Ergonomic Safe AccessHigh Load-BearingEasy Assembly

Product Description:

Advantages:

1. Safe stair access which confirms to ergonomics;
2. Applicable to various construction projects;
3. Can be used as emergency evacuation access in public areas;
4. Single and double segment stairs can be chosen;
5. Easy to assemble and dismantle;
6. Few components;
7. Versatile design to ensure compatible with various scaffolds;
8. Concise design and high load-bearing capacity;
These scaffold stair accesses have a height up to 24m. Height over 24m depends on structural analysis.

Description of Ringlock Scaffold Stair:

Place of Origin	China (Mainland)
Brand Name	ADTO
Product name	Ringlock Scaffold Stair
Unit Size	Width 1.8m × Length 3.6m
Total Weight	507.52 kg / unit
Max Height	Up to 24 m (higher depends on structural analysis)
Application	Construction / Emergency Evacuation Access
Surface	Hot Dipped Galvanized
Loading Port	Tianjin
Payment Terms	L/C, T/T

Materials required per a unit of size width 1.8m × length 3.6m (Total Weight: 507.52kg).

Code	Material	Length	Surface Treatment
Standard — 10 pcs in total	Q355	48.3 × 3.25 × 1000 mm	4.84 kg
Standard ① — 10 pcs in total	Q355	48.3 × 3.25 × 1200 mm	6.12 kg
Standard — 10 pcs / floor	Q355	48.3 × 3.25 × 2000 mm	9.69 kg
Ledger — 8 pcs / floor	Q355	48.3 × 3.25 × 900 mm	4.28 kg
Ledger — 5 pcs / floor	Q355	48.3 × 3.25 × 1800 mm	7.72 kg
Level Diagonal Brace — 2 pcs / floor	Q355	48.3 × 3.25 × (L=900, W=900)	5.17 kg
Vertical Diagonal Brace — 6 pcs / floor	Q355	48.3 × 3.25 × (L=1800, H=2000)	11.63 kg
Dismountable Stair Case — 1 set / floor	Q235	L=1800, H=2000	47.78 kg
Catwalk — 2 pcs / floor each	Q235	500 × 1800 / 240 × 1800 mm	16.24 / 7.85 kg
Base Collar — 10 pcs in total	Q355	57 × 3.5 × 280 mm	1.64 kg
Adjustable Jack Base — 10 pcs in total	Q235	M38 × 600	3.57 kg

P.S.: Either 1200mm standard or 1000mm standard with base collar can be chosen. They reach the same effect.
