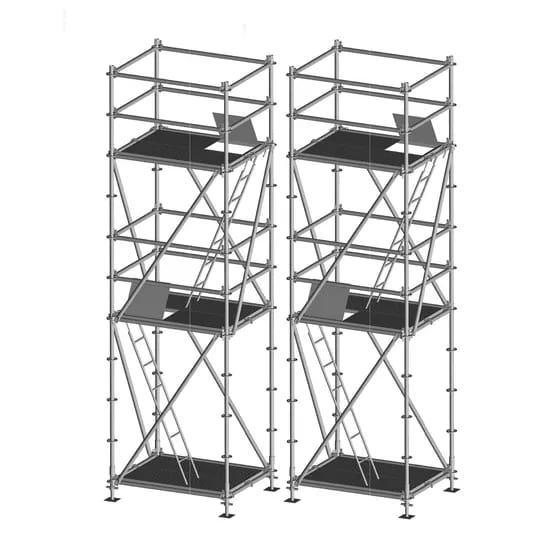

Scaffold Working Tower

Categories: Scaffolding Accessories

Product Superiority:

Multiple UsagesModular DesignMovable with Casters

Product Description:

Advantages:

1. Multiple usages: outdoor or indoor scaffolding;
2. Modular design to ensure easy and safe to assemble;
3. Movable when installed casters;
4. Big platform so easy to work;
5. Can be moved at one time by a crane or other lifting machines.
These working towers have a height up to 8m when used independently; when connecting with tubes, the height can be up to 24m.

Description of Scaffold Working Tower:

Place of Origin	China (Mainland)
Brand Name	ADTO
Product name	Scaffold Working Tower
Unit Size	1.2 m × 1.8 m
Total Weight	249.83 kg / unit
Max Height	Up to 8 m independently / 24 m with tubes
Application	Indoor & Outdoor Scaffolding
Surface	Hot Dipped Galvanized
Loading Port	Tianjin
Payment Terms	L/C, T/T

Materials required per a unit of size 1.2m × 1.8m (Total Weight: 249.83kg).

Code	Material	Length	Surface Treatment
Standard — 4 pcs in total	Q355	48.3 × 3.25 × 1000 mm	4.84 kg
Standard ① — 4 pcs in total	Q355	48.3 × 3.25 × 1200 mm	6.12 kg
Standard — 4 pcs / floor	Q355	48.3 × 3.25 × 2000 mm	9.69 kg
Ledger — 6 pcs / floor	Q355	48.3 × 3.25 × 1200 mm	5.43 kg
Ledger — 6 pcs / floor	Q355	48.3 × 3.25 × 1800 mm	7.72 kg
Vertical Diagonal Brace — 2 pcs / floor	Q355	48.3 × 3.25 × (L=1800, H=2000)	11.63 kg
Monkey Ladder — 1 pcs / floor	Q235	W=300, H=2000	5.75 kg
Foldable Catwalk — 1 set / floor	Q235	L=1800, H=500	22.24 kg
Catwalk — 1 pcs / floor	Q235	500 × 1800	16.24 kg
Base Collar — 4 pcs in total	Q355	57 × 3.5 × 280 mm	1.64 kg
Adjustable Base Jack — 4 pcs in total	Q235	M38 × 600	3.57 kg

P.S.: Either 1200mm standard or 1000mm standard with base collar can be chosen. They reach the same effect.
