Ringlock Scaffolding System
Categories: Scaffolding Accessories
Product Superiority:
High Loading CapacityModular DesignTwo-Step Three-Span
Product Description:
Advantages:
- 1. Modular ringlock design — fast assembly and dismantling;
- 2. High loading capacity, suitable for large facade projects;
- 3. Standard components, easy to maintain and replace;
- 4. Hot-dipped galvanized for long service life;
- 5. Two-step three-span wall connection ensures stability.

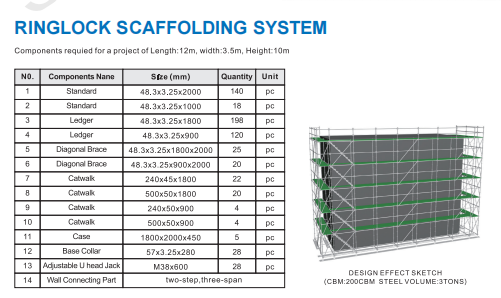

- Components required for a project of Length: 12 m, Width: 3.5 m, Height: 10 m. Design effect — CBM: 200 CBM, Steel Volume: 3 tons.
Description of Ringlock Scaffolding System:
| Place of Origin | China (Mainland) |
|---|---|
| Brand Name | ADTO |
| Product name | Ringlock Scaffolding System |
| Project Size | L 12 m × W 3.5 m × H 10 m |
| Steel Volume | 3 tons |
| Volume | 200 CBM |
| Wall Connection | Two-step, three-span |
| Application | Facade Scaffolding / Construction Access |
| Surface | Hot Dipped Galvanized |
| Loading Port | Tianjin |
| Payment Terms | L/C, T/T |
SPECIFICATION
| Code | Material | Length | Surface Treatment |
|---|---|---|---|
| Standard — 140 pcs | Q355 | 48.3 × 3.25 × 2000 mm | Hot Dipped Galvanized |
| Standard — 18 pcs | Q355 | 48.3 × 3.25 × 1000 mm | Hot Dipped Galvanized |
| Ledger — 198 pcs | Q355 | 48.3 × 3.25 × 3500 mm | Hot Dipped Galvanized |
| Ledger — 120 pcs | Q355 | 48.3 × 3.25 × 900 mm | Hot Dipped Galvanized |
| Diagonal Brace — 25 pcs | Q355 | 48.3 × 3.25 × 1800 × 2000 mm | Hot Dipped Galvanized |
| Diagonal Brace — 20 pcs | Q355 | 48.3 × 3.25 × 900 × 2000 mm | Hot Dipped Galvanized |
| Catwalk — 22 pcs | Q235 | 240 × 45 × 1800 mm | Hot Dipped Galvanized |
| Catwalk — 4 pcs | Q235 | 500 × 50 × 1800 mm | Hot Dipped Galvanized |
| Catwalk — 4 pcs | Q235 | 240 × 50 × 900 mm | Hot Dipped Galvanized |
| Catwalk — 4 pcs | Q235 | 500 × 50 × 900 mm | Hot Dipped Galvanized |
| Case — 5 pcs | Steel | 1800 × 2000 × 450 mm | Hot Dipped Galvanized |
| Base Collar — 28 pcs | Q355 | 57 × 3.25 × 280 mm | Hot Dipped Galvanized |
| Adjustable U Head Jack — 28 pcs | Q235 | M38 × 600 mm | Hot Dipped Galvanized |
| Wall Connecting Part | Steel | Two-step, three-span | Hot Dipped Galvanized |
