Ringlock Scaffold Formwork System
Categories: Scaffolding Accessories
Product Superiority:
Modular DesignHigh Loading CapacityVersatile Components
Product Description:
Advantages:
- 1. Modular design to ensure assembling and dismantling easily and fast;
- 2. Concise design and high loading capacity;
- 3. Compressive strength up to 400KN;
- 4. Versatile components can be used in outdoor scaffolding or access towers;
- 5. Standard components, easy to maintain.

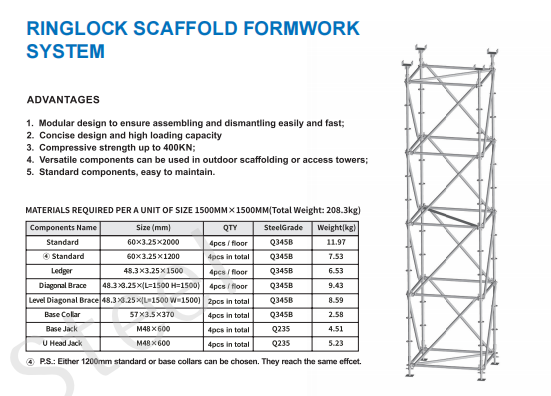

Description of Ringlock Scaffold Formwork System:
| Place of Origin | China (Mainland) |
|---|---|
| Brand Name | ADTO |
| Product name | Ringlock Scaffold Formwork System |
| Unit Size | 1500 mm × 1500 mm |
| Total Weight | 208.3 kg / unit |
| Compressive Strength | Up to 400 KN |
| Application | Outdoor Scaffolding / Access Towers |
| Surface | Hot Dipped Galvanized |
| Loading Port | Tianjin |
| Payment Terms | L/C, T/T |
SPECIFICATION
Materials required per a unit of size 1500mm × 1500mm (Total Weight: 208.3kg).
| Code | Material | Length | Surface Treatment |
|---|---|---|---|
| Standard — 4 pcs / floor | Q345B | 60 × 3.25 × 2000 mm | 11.97 kg |
| Standard ① — 4 pcs in total | Q345B | 60 × 3.25 × 1200 mm | 7.53 kg |
| Ledger — 4 pcs / floor | Q345B | 48.3 × 3.25 × 1500 mm | 6.53 kg |
| Diagonal Brace — 4 pcs / floor | Q345B | 48.3 × 3.25 × (L=1500 H=1500) | 9.43 kg |
| Level Diagonal Brace — 2 pcs in total | Q345B | 48.3 × 3.25 × (L=1500 W=1500) | 8.59 kg |
| Base Collar — 4 pcs in total | Q345B | 57 × 3.5 × 370 mm | 2.58 kg |
| Base Jack — 4 pcs in total | Q235 | M48 × 600 | 4.51 kg |
| U Head Jack — 4 pcs in total | Q235 | M48 × 600 | 5.23 kg |
P.S.: Either 1200mm standard or base collars can be chosen. They reach the same effect.
